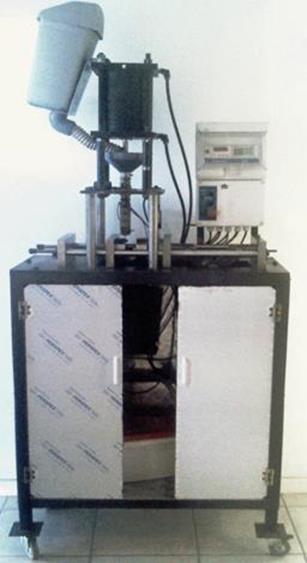

Fully automatic 12 gram shot weight, 1ton clamping force and weighing 150kg makes this machine idea for long and short production runs. It can be operated from your home garage or small room generating plenty of income using cheap moulds that can be made from; copper, brass, aluminium and cast types, because of the low pressures used to clamp and inject.

Fully Automatic or manual function, On board cooling tank and radiator system

SPECIFICATIONS

·         Voltage - 220volts

·         Amperes – Machine @ max 3 amps, plus Compressor @ max 6.5 amps.  Total 10 amps

·         Machine Dimensions - Width 34.5 cm Height 1.9 meters Weight 150 kg

·         Energizer - Pneumatics 1.5hp, 6 bar, max 6.5 amps

·         Shot Weight - 16 grams

·         Cycle times - minimum 30 seconds per cycle

·         Barrel – Steel

·         Temperature - Electronic digital

·         Heater capacity - 400 watts

·         Injection air cylinder 160 mm dia x 160 mm stroke

·         Platen - 160 mm between tie bars x 130 mm max height

·         Clamping pressure - Toggle system 1 ton

·         Platen travel - 70 mm

·         Injection mechanism - Piston type

·         Operational control - Electronic PLC for controlling; mould close, injection time, keep open and rest period for insert moulding applications

·         Fully adjustable mould locking mechanism

·         Injection pressure - control with visible gauge

·         Emergency off switch

·         Adjustable injection cylinder positioning for moulds of other designs

·         Hopper  - 1.150 kg feed capacity

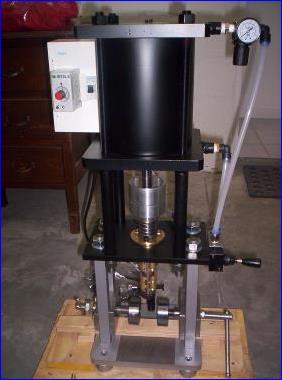

Semi Automatic Table top Model

This very versatile machine is extremely easy to operate and can be used for short production runs as well as prototype models with cheap cast resin moulds
